Portable cut 40 50 60 80 cnc plasma cutter machine price 100 120 130 160 200

  • 2 - 19 Units
    $130.00
  • >=20 Units
    $125.00
Effective Cutting Range (mm):
all type CUT-60 CUT-80 CUT-40 CUT-50 CUT-100 CUT-120 CUT-130
Samples:
$125.00 /Unit | 1 Unit (Min. Order) | Buy Samples
Lead Time:
Quantity(Units) 1 - 10 11 - 50 >50
Est. Time(days) 3 25 Negotiable
Customization:
Customized logo (Min. Order: 100 Units)
Customized packaging (Min. Order: 500 Units)

More

Graphic customization (Min. Order: 500 Units) Less
Report Suspicious Activity
Overview
Quick Details
Motor Type:
Stepper Motor
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
ST
Model Number:
CUT series
Voltage:
3PH/380V
Rated Power:
7.5KVA
Dimension(L*W*H):
470*230*460mm
Certification:
CE Certification
Weight (KG):
15
Key Selling Points:
Long Service Life
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Printing Shops
After Warranty Service:
Video technical support, Online support, Spare parts
Local Service Location:
United States, Russia
Showroom Location:
United States, Russia
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
3 months
Core Components:
Motor
After-sales Service Provided:
Overseas service center available
Item Type:
Tig Welding And Cutting Machine
Frequency:
50/60 Hz
Duty Cycle:
60%
Current Range:
10~60A
Arc Start type:
Touch/Pilot Arc
Efficiency:
90%
Business Type:
Manufacture/Factory
Weight:
15KG
Warranty:
1 Year
Supply Ability
Supply Ability:
10000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Standard Packing
Port
Ningbo, Shanghai, Wenzhou
Lead Time :
Quantity(Units) 1 - 10 11 - 50 >50
Est. Time(days) 3 25 To be negotiated
Product Description

Inverter DC Air Plasma Cutter
IGBT Type

Soft switching IGBT Module/IGBT Tube tech, Software controlled, Synergic/Without Synergic control.
· Over heat, over current, over voltage protection built in.
· Heavy duty cycle design for Medium and Heavy industrial using.
· Optional: Heavy trolley(3 floors type), Water cooling system. Robotic Connectors.
· Optional: Shipyard designed, PCB coat, unique fan route designed.
· Optional: PFC function(1phase 75~275)and(3phase 220~525V); 110/220V, 110V.
· Optional: cold TIG welding/micro TIG welding.

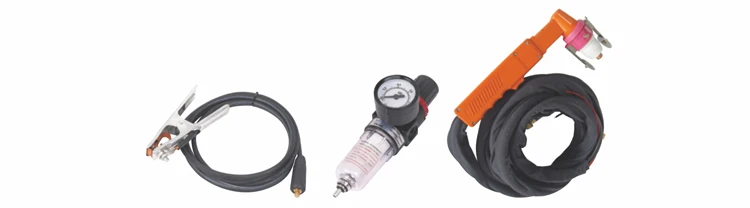

Accessories:
Earth clamp × 1pcs,cable joint × 1pcs,grounding cable × 3meters,pressure regulator × 1pcs, gas hose ×0.6meter, hose hoop × 3pcs,cutting torch × 1pcs.
Accessories:
Earth clamp×1pcs, cable joint×1pcs, grounding cable×3meters, pressure regulator×1pcs, gas hose×0.6meter, hose hoop×3pcs, cutting torch×1pcs.

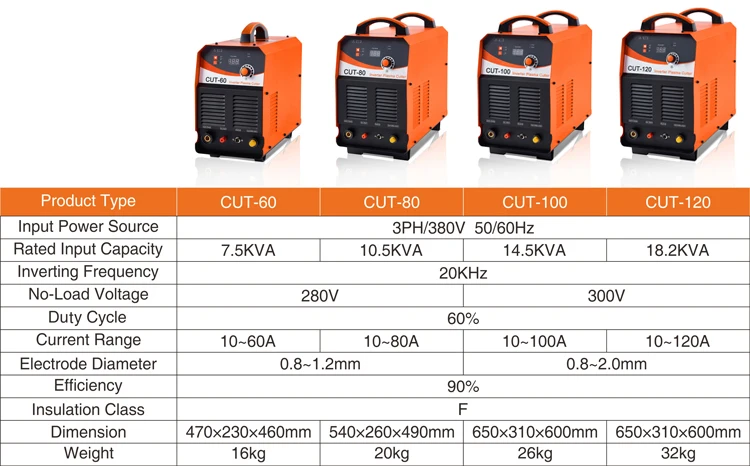

Specification
Material
Sheet Thickness(mm)
Arc Start
Current Range(A)
Model
Carbon steel Stainless Steel Low Alloy Steel
0.3~16.0
Contact
20~40A
CUT-40
1.0~25.0
Contact
20~60A
CUT-60
1.0~30.0
Uncontact
20~100A
CUT-100
1.0~35.0
Uncontact
20~120A
CUT-120
1.0~40.0
Uncontact
20~160A
CUT-160
1.0~50.0
Uncontact
20~200A
CUT-200
Copper & Alloy Aluminum & Alloy
0.3~8.0
Contact
20~40A
CUT-40
1.0~13.0
Contact
20~60A
CUT-60
1.0~15.0
Uncontact
20~100A
CUT-100
1.0~18.0
Uncontact
20~120A
CUT-120
1.0~20.0
Uncontact
20~160A
CUT-160
1.0~25.0
Uncontact
20~200A
CUT-200
Packing & Delivery
Packaging Details: Standard Packing, then in wooden carton
Delivery Detail: 15-20 work days after the whole payment
